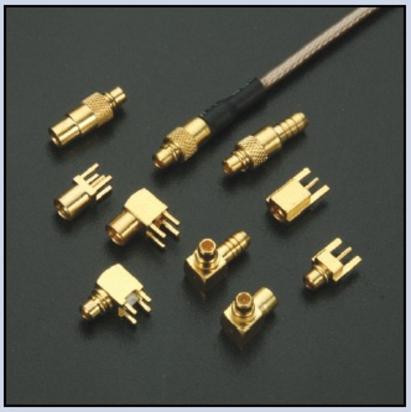

MMCX Connectors
ELECTRICAL DATA RoHS Compliant
Impedance : 50Ω
Frequency range : DC~6 GHz
Contact current : DC 1.0A max
Voltage rating : 170V rms
Contact resistance - Center contacts : 5.0 mΩ
Outer contacts : 2.5 mΩ
Insulation resistance : 1000MΩ min.
V.S.W.R : ≤1.2 at 2GHz
MECHANICAL DATA
Engagement force : Max. 15N
Separation force : Min. 6N~Max. 15N
Life : 500 matings.
Contact captivation : 10 N
ENVIRONMENTAL DATA
Temperature range : -65OC~+125OC
Corrosion resistance : MIL-STD-202, Method 101, Condition B.
Moisture resistance : MIL-STD-202, Method 106
Thermal shock : MIL-STD-202, Method 107, Condition C.
Vibration : MIL-STD-202, Method 204, Condition D.
