- SMB Bulkhead Jack (Contact Us)
- SMB Receptacle Jack (Contact Us)
- SMB PCB Plug (Contact Us)
- SMB PCB Jack (Contact Us)
Meets Standard RoHS Compliant
MIL-C-39012
ELECTRICAL DATA
Impedance : 50ohm
Frequency range : DC to 4GHz
Contact current : DC 1.5A max.
Voltage rating : 250V rms
Contact resistance : 3.0 ㏁ - Center contacts
0.5 ㏁ - Outer contacts
Insulation resistance : 1000 ㏁ min.
Insertion loss : 0.6dB max.
VSWR : Straight 1.3+0.04f(GHz)
Right Angle 1.4+0.06f(GHz)
RF leakage : -55dBm min. between 2-3GHz
MECHANICAL DATA
Engagement force : Max. 63N
Life : 500 matings
Contact captivation : Max. 15N
ENVIRONMENTAL DATA
Temperature range : -65℃~+125℃
Corrosion resistance : MIL-STD-202, Method 101, Condition B
Moisture resistance : MIL-STD-202, Method 106
Thermal shock : MIL-STD-202, Method 107, Condition B
Vibration : MIL-STD-202, Method 204, Condition D
New Website coming soon!

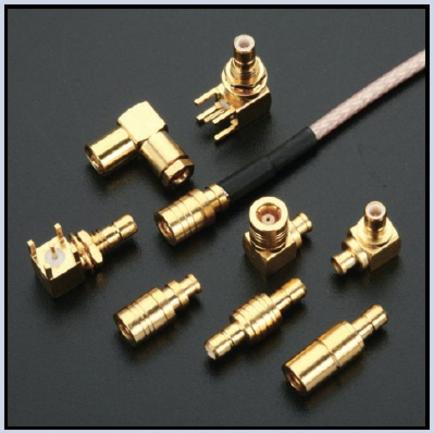

SMB Connectors
RF, Coaxial, & Microwave Components
Premier RF can provide functional equivalents to most MFG's connectors. Contact us for assistance
